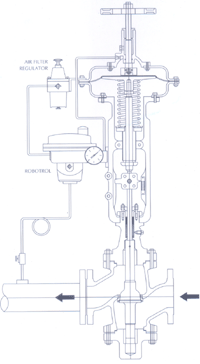

Pressure Reducing Valves >> Robotrol Operated Pneumatic Control Valve

† Model - RB70142 (IBR Approved)


This design of pressure regulating valve is according to latest development and highly in demand for accurate downstream pressure control.

This is an ideal replacement of self regulating PRV where high flow & high accuracy are required.

Features

The valve does not require any other instrumentation and works as good as control valve.

Very precise downstream pressure control.

High turn down ration of flow 40:1 and for pressure 20:1

Top and Bottom guided for high stability.

Manual override eliminates need for by pass line and hence causes huge savings.

Different bellows to cover various outlet pressure requirments.

Outlet Pressure Range Bellow type
0.5 - 2.5 Kg/cm2
L
2.0 - 8.0 Kg/cm2
M
7.5 - 12.5 Kg/cm2
H

More than 200 valves installed in Textile Processing Industries.

Valve Data
Valve Sizes(NB):
40
50
65
80
100
150
200
F/F/ distance - 150# (mm)
222
254
276
298
352
451
543
Valve CV:
29
54
74
115
162
370
575
Center to Top(mm):
940
1015
1085
1085
1170
1410
1450
Weight kg-appox.
55
65
90
110
150
230
370
