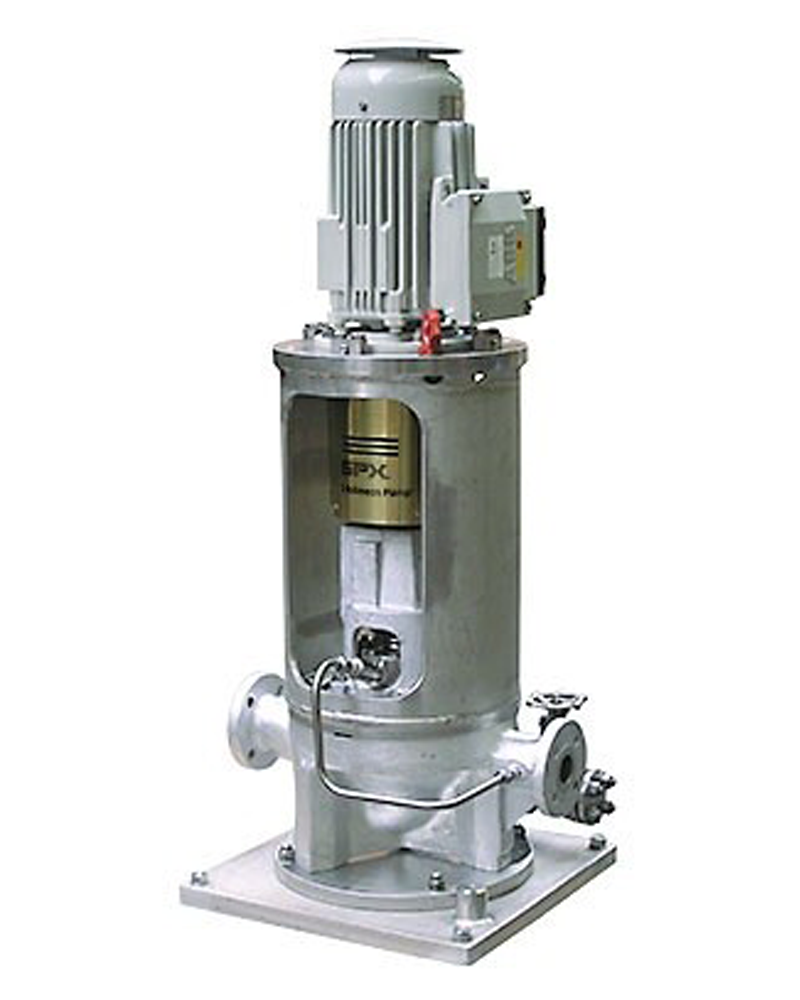

CombiProLine – Vertical Heavy Duty Process Pump with Inline Ports according to API 610, API 682, API 685

The CombiProLine is a vertical overhung single-stage process pump with inline ports. It complies with API 610 (OH3 design), API 682, and API 685 standards, built for thin, clean, or slightly contaminated liquids in refineries and chemical plants

Design and Mechanical Features:

• Standards Compliance: Built to API 610, API 682, and API 685 specifications.
• Configuration: Vertical in-line overhung single-stage design with an independent bearing frame.
• Bearings: Two angular contact thrust bearings and a cylindrical roller bearing, grease lubricated.
• Integration: Fully integrated layout including the pump, motor, foot support, and accessories
