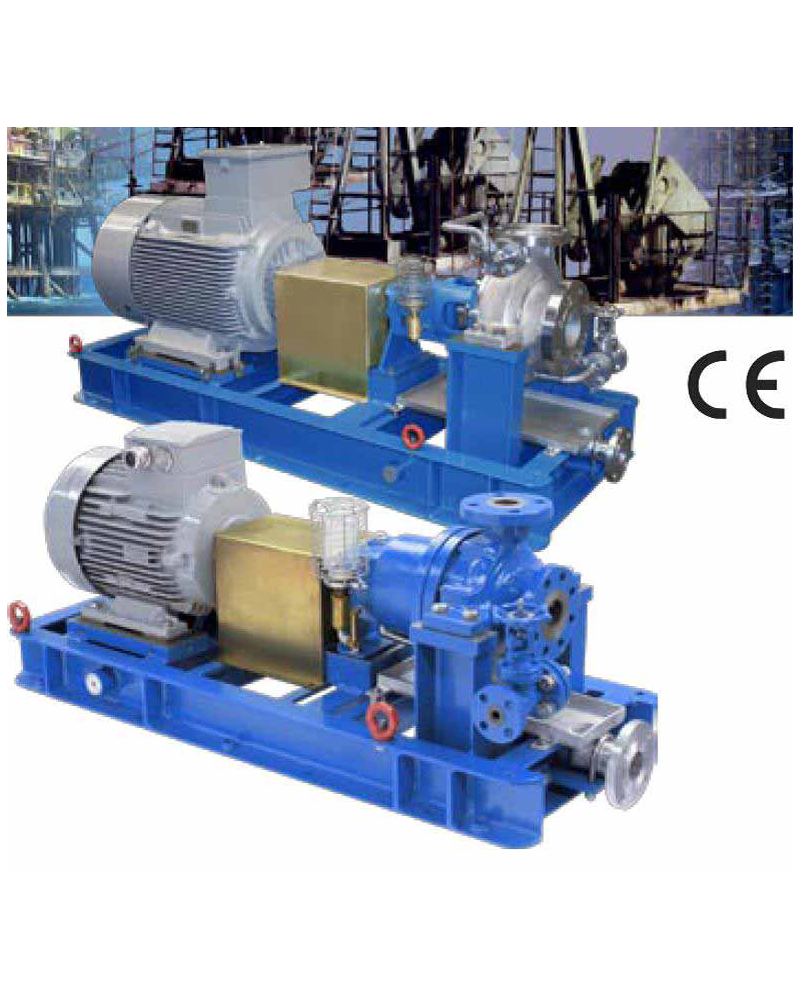

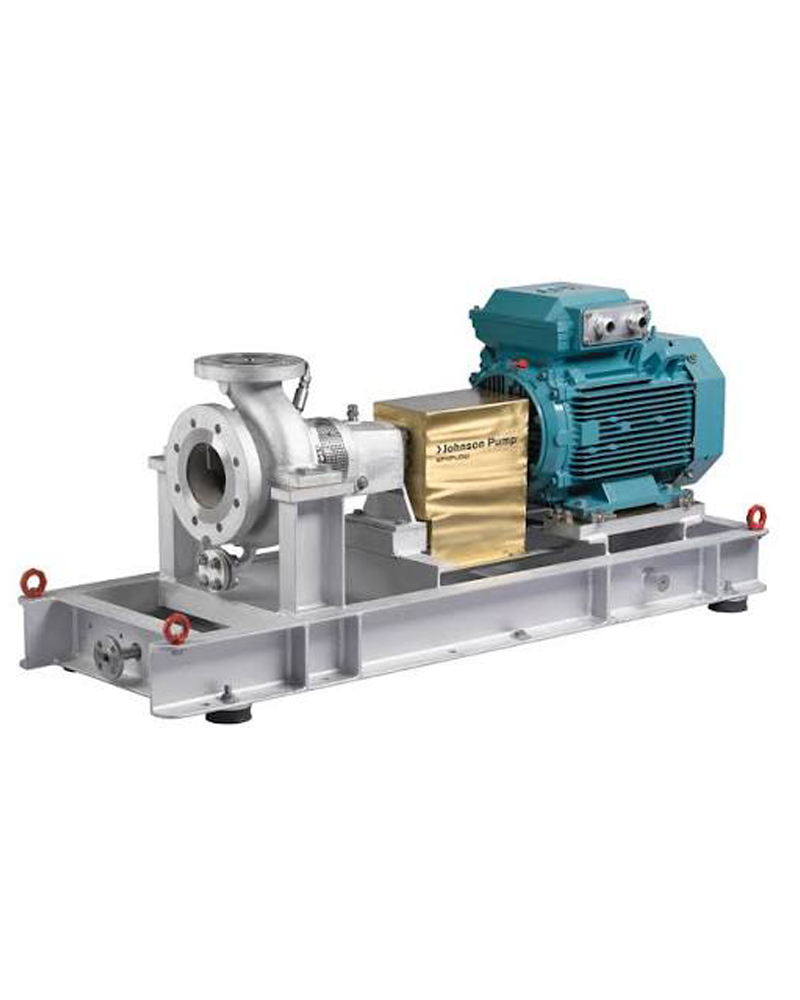

CombiPro – Heavy Duty Process Pump
The CombiPro – Heavy Duty Process Pump is a centerline-mounted, single-stage horizontal centrifugal pump built to strict API 610, API 682, and API 685 standards for refineries, petrochemical plants, and heavy industrial applications
Key Design Features
- Centre-line mounted end-suction pump overhung single stage process pump
- Design requirements according to API 610
- Seal chamber to API 682
- Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket
- Fully integrated design pump, motor, base plate, and accessories
- Outstanding hydraulic performance
- High efficiency impeller
- Closed impeller or half open impeller with wear plate and external adjustment
- Dynamically balanced impeller
- Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5
- Atex certification
- Robust shaft design
- Extended life time
- 2 angular contact thrust bearings and cylindrical roller bearing
- Oil bath lubricated bearings
- Bearing housing cooling optional
- Easy maintenance through the Back-Pull-Out principle
- Renewable wear rings for casing and impeller
- Magnetic drive version according to API 685 optional
- Vertical version optional
