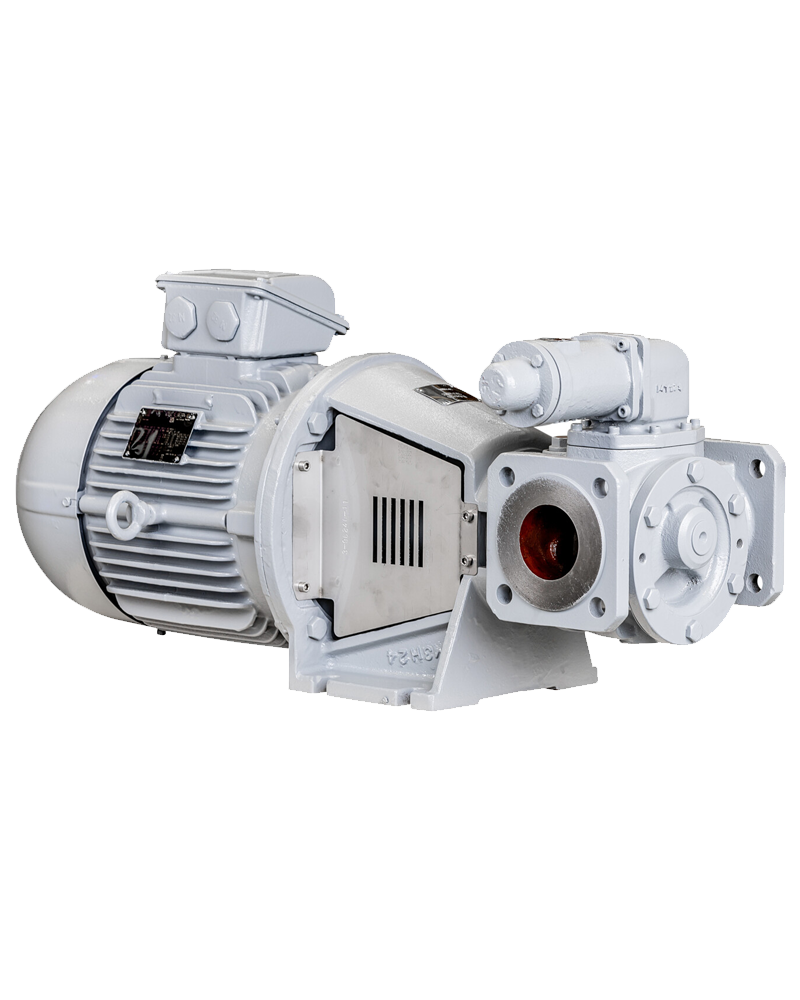

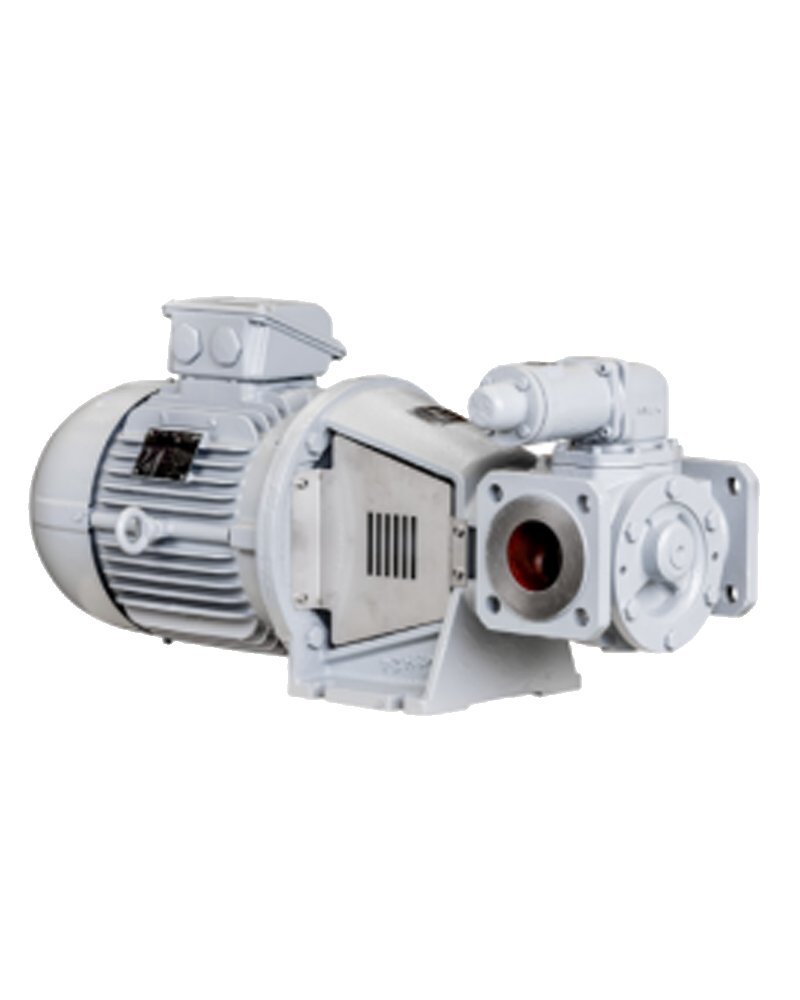

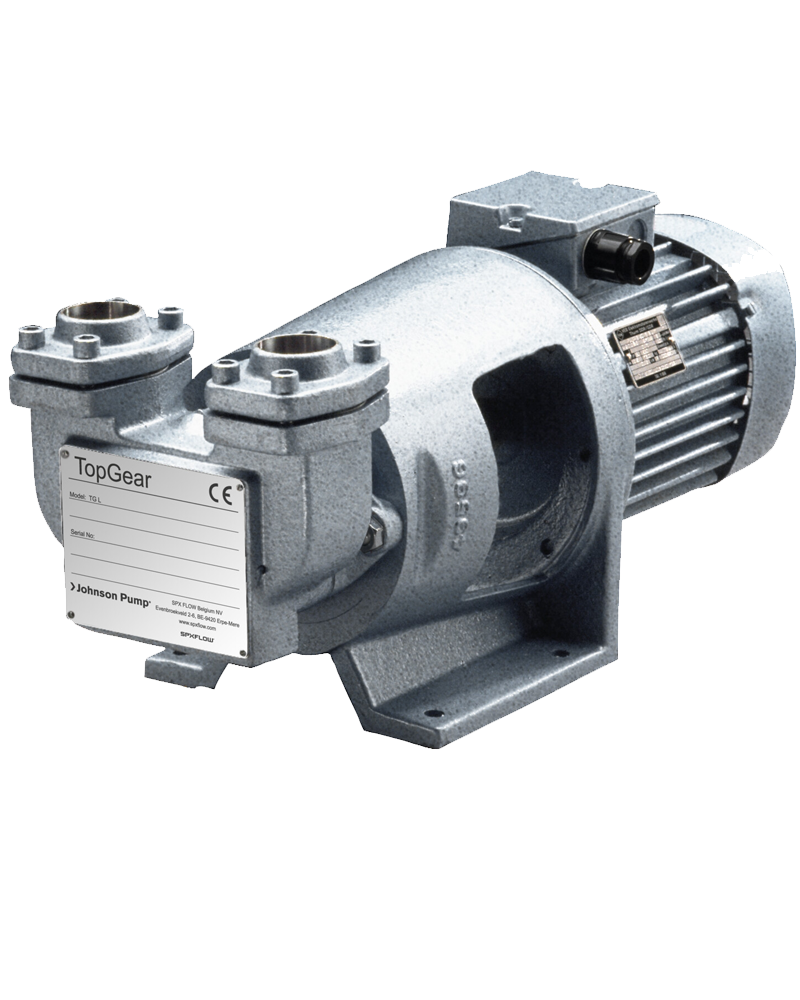

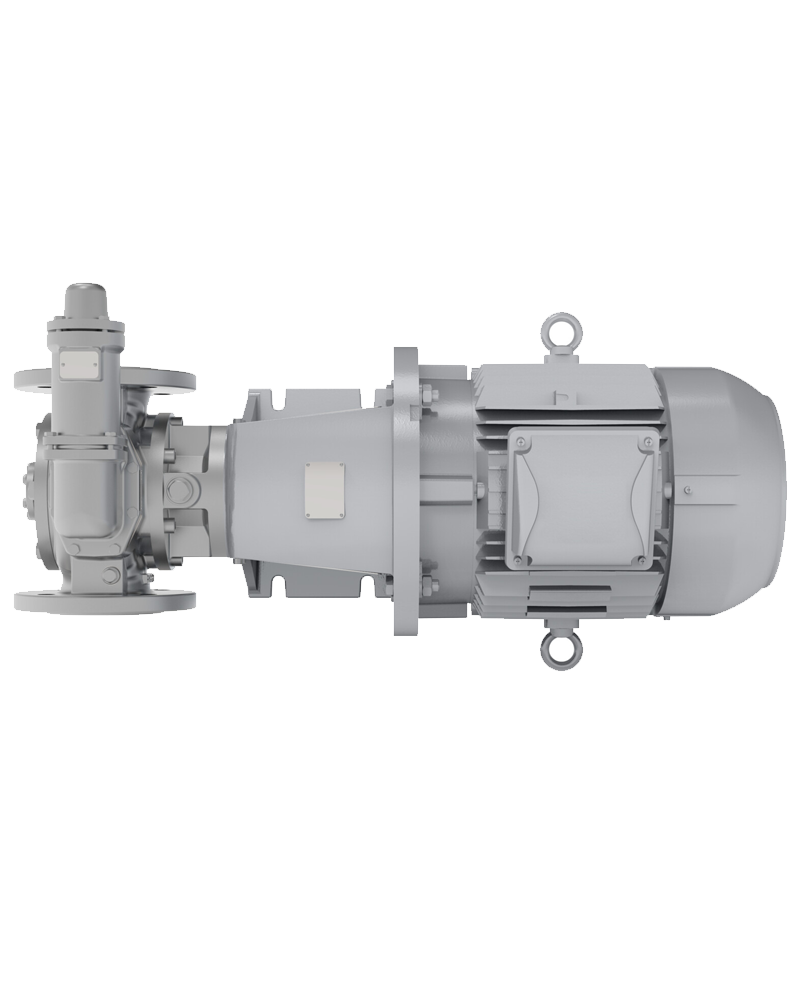

TopGear Bloc – Internal Gear Pump

The Johnson Pump TopGear Bloc close-coupled gear pump features the proven hydraulics of our TopGear range and is available in cast iron and stainless steel. It is designed for low-to-medium viscosity, clean, and non-abrasive liquids.

Suitable Applications

  • With close-coupled IEC electric motors, TopGear Bloc gear pumps are ideal for scenarios where space is at a premium, such as OEM equipment and shipbuilding.
Share:
Description
Specifications
Description

TopGear Bloc pumps run on direct drive motor speed which means an economical solution for pumping low-viscosity and medium-viscosity, clean, non-abrasive media. It features a compact design for quick and easy installation in areas with limited space, eliminating the need for manual alignment of the pump and motor.

Our Pumps has

  • Superior Efficiency: Engineered for low-to-medium viscosity liquids, ensuring optimal performance.
  • Compact Design: Ideal for installations with space constraints.
  • Perfect Alignment: The close-coupled design guarantees precise pump-motor alignment, enhancing service life.
  • Easy Maintenance: Simple pump design with minimal components for hassle-free upkeep.
  • CE Certified: Compliance with CE standards for quality and safety.

Compatible Media Types

  • Lubrication Oil
  • Fuel Oil
  • Bio-Fuel
  • Chemical Additives
  • Food Oils
  • Solvents
  • Glycol



Specifications
Features Specifications
Casing: Cast iron, Bronze, Stainless steel
Impeller: Cast iron, Bronze, Stainless steel
Max. capacity: 350 m3/h (1540 GPM)
Max. delivery head: 80 m (262 ft)
Max. liquid temp: 95°C (203°F)
Max. pressure: 900 kPa (9 bar) (131 psi)
Max. speed: 3 600 rpm
Self-priming: Up to 7 m (Up to 23 ft)
