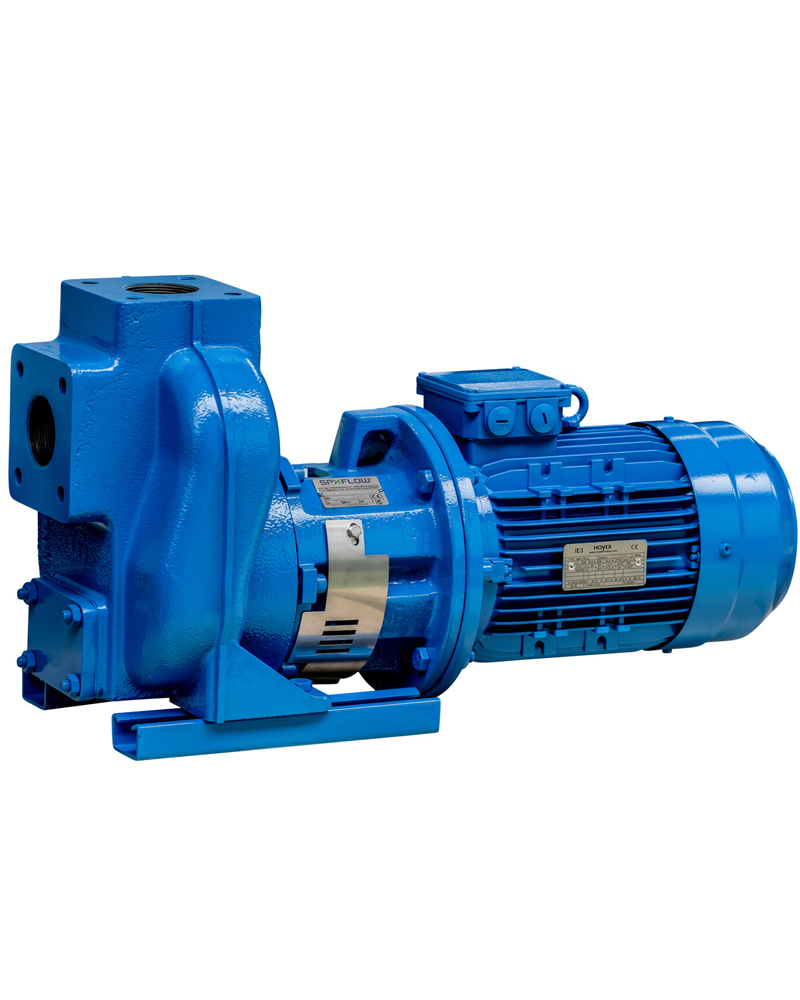

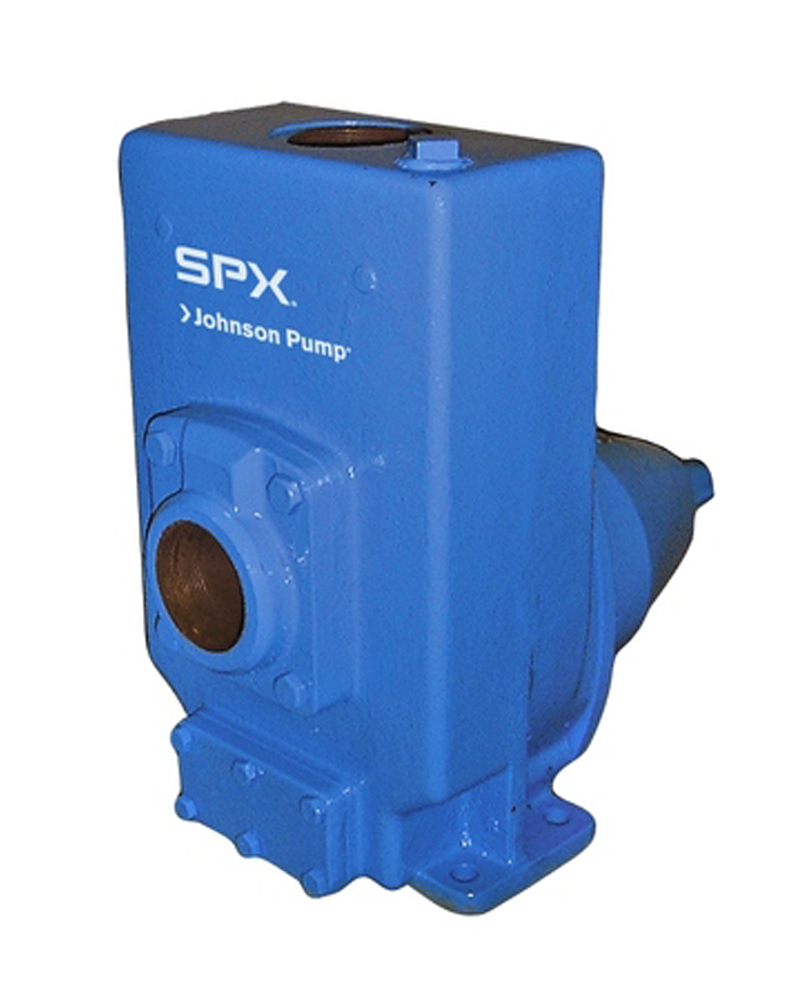

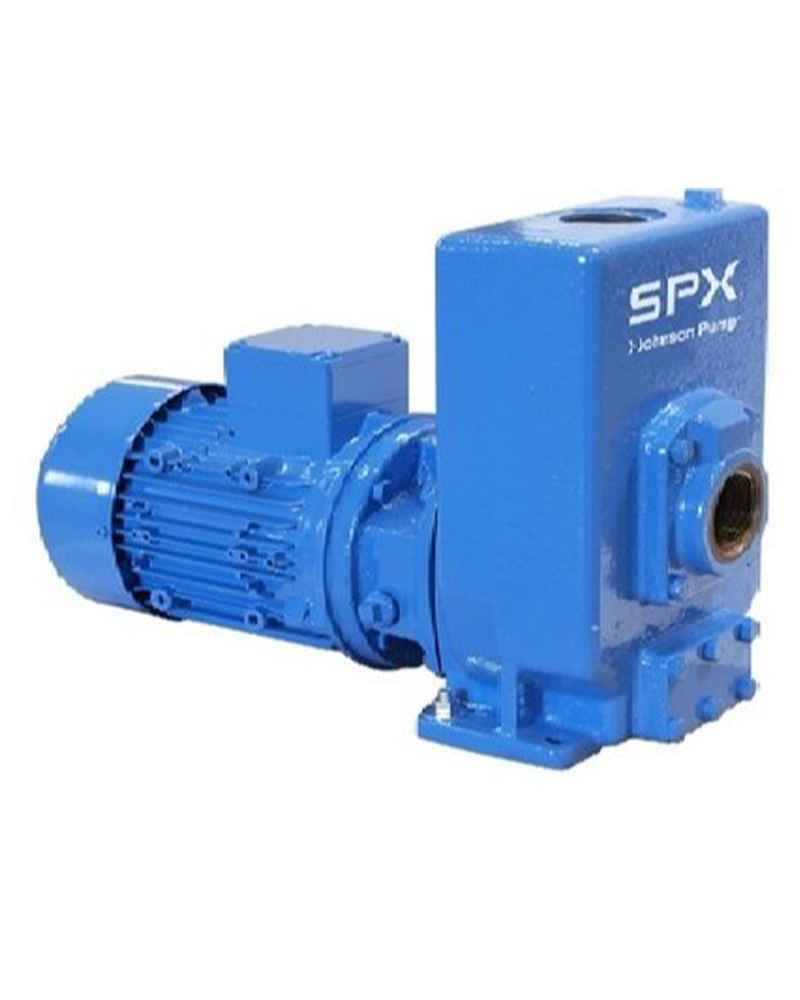

FreFlow pumps are self-priming centrifugal pumps suitable for handling contaminated and low-viscosity liquids. Its innovative design, eliminating the need for a non-return valve, results in less maintenance. Oil bath lubrication on the atmospheric side of the mechanical seal prevents dry running during the self priming period. The capability of handling gaseous liquids ensures smooth and continuous operation.

Design Features

• Excellent Self-Priming Ability
• No Non-Return Valve Required in the Inlet
• Single Unbalanced/Balanced Seals to EN 12756 (DIN 24960)
• Mechanical Seal with Oil Bath Quench Protection
• Ideal for Handling Contaminated Liquids
• Easy Maintenance – Back-Pull-Out Principle
• Threaded Connections on Flanges 32 and 40
• ISO 7005 PN 16 Flange Connection for 50 and Higher
• Optional PN 20 (ANSI B16.5 150 lbs) Flange Configuration
• Greased-for-Life Roller Bearings
• Optional Magnetic Drive
• ATEX Certified
• CE Certified

Suitable Applications

For Contaminated Liquids and Suction Lift Installations

Suitable for Contaminated liquids, as well liquids containing air or gas, for sumps, gullies and many other applications where a suction lift is required
