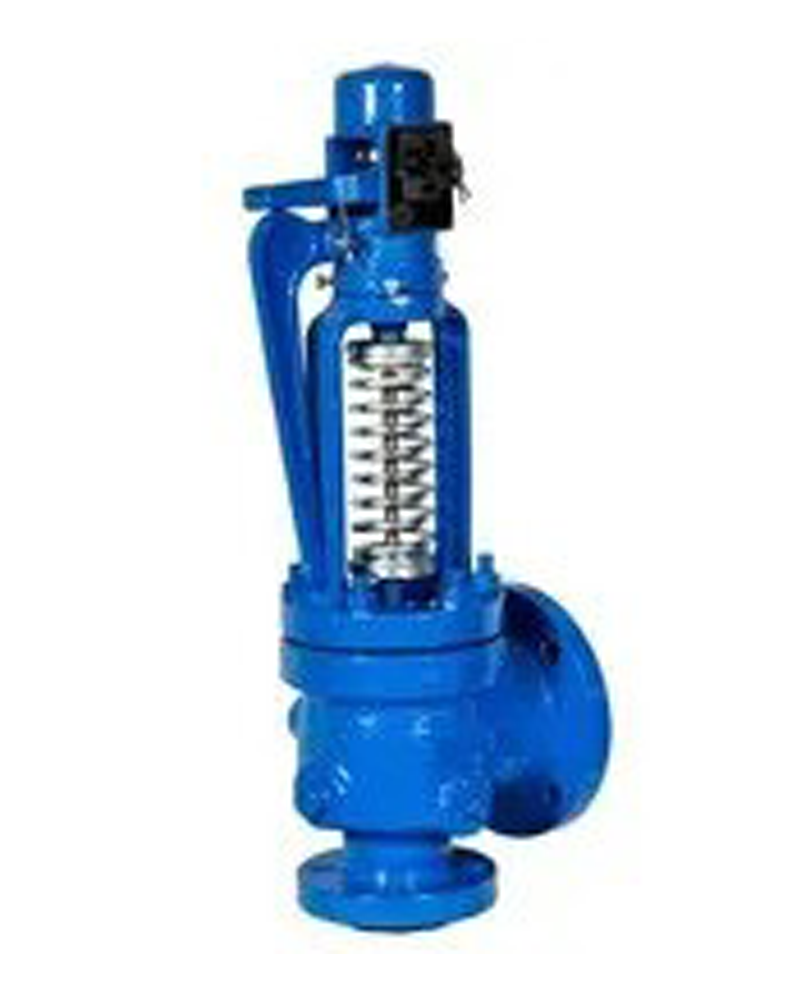

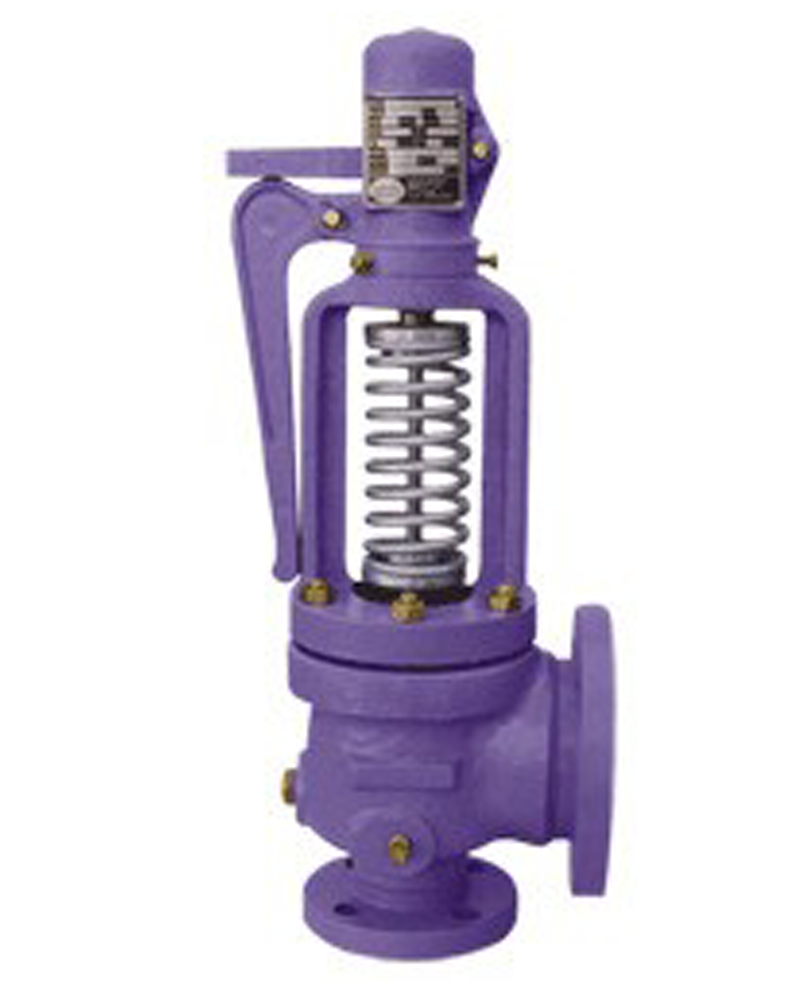

Open Bonnet, Conventional Design, Open Cap with Lever. Designed as per API 526/API 520 and also as per ASME Section VIII Ideally suitable for Steam Service. Set pressure varies from 0.7 kg/cm2 to 110 kg/cm2. More then 5000 valves installed on boilers across the country.
| Features | Specifications |
|---|---|
| Valve Size | 25 x G x 50 40 x J x 80 80 x L x 100 |
| Rating: | BS 10 Table H, Class 150 to Class 900 |
| Max. capacity: | 850 m3/h |
| Orifice Size: | -G(20.0 mm) to V(181.0mm) |
| Max. liquid temp: | 120°C |
| End Connection: | Flanged |
| Material: | Carbon Steel, Stainless Steel & Alloy Steel |
