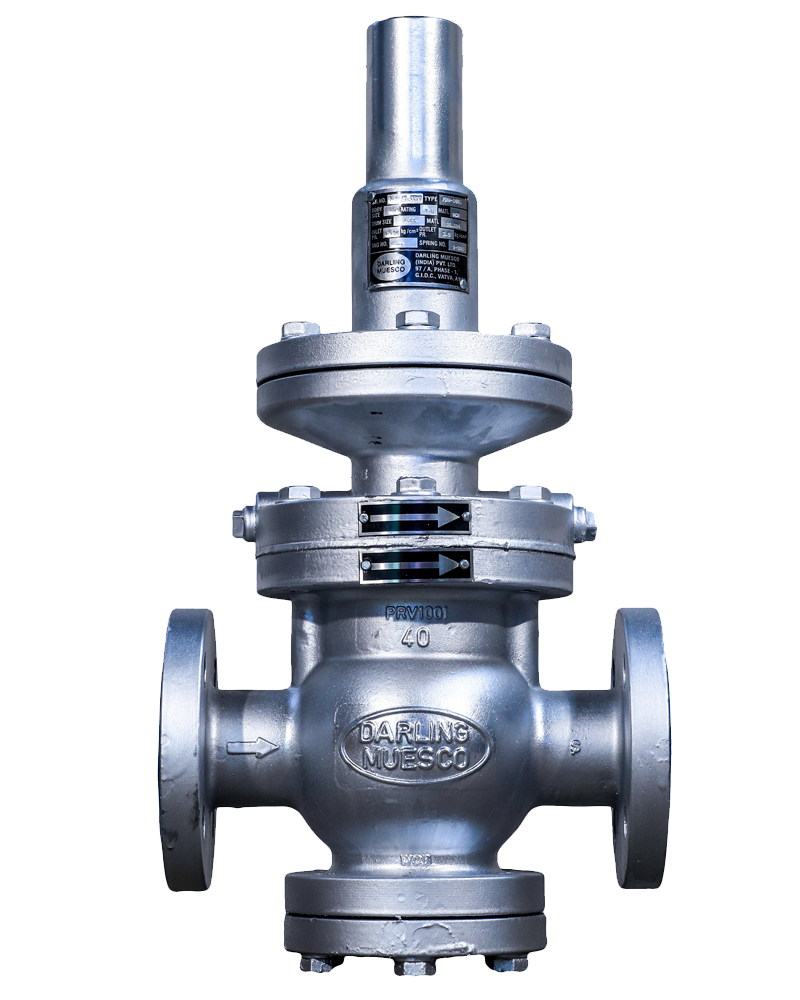

Self Acting, Pilot & Piston operated Pressure Reducing Valves are most popular for pressure reduction of STEAM in all types of Industries. The Valve operates on Spring Balance principle. The Downstream pressure is sensed below stainless steel diaphragm which is balanced by the spring tension. Increasing spring tension, increases outlet pressure and vice versa. The Valve has additional external Sense Line provision also, which improves performance and accuracy of outlet pressure.

Features

• Special quality hardened stainless steel diaphragm manufactured by chemical ethching process.
  -> Max. inlet pressure of 20 Kg/cm2
  -> Max. Adjustable outlet – pressure of 12 kg/cm2
• Maintains Constant outlet pressure, irrespective of change in Upstream pressure.
• Variety of Spring Range of better down stream pressure control.
• Outlet Pressure Range Spring Colour
  0.5 – 2.5 Kg/cm2 Yellow
  2.0 – 8.0 Kg/cm2 Green
  7.5 – 12.5 Kg/cm2 Red
• Very ideal for low and medium pressure, steam, gas and air
