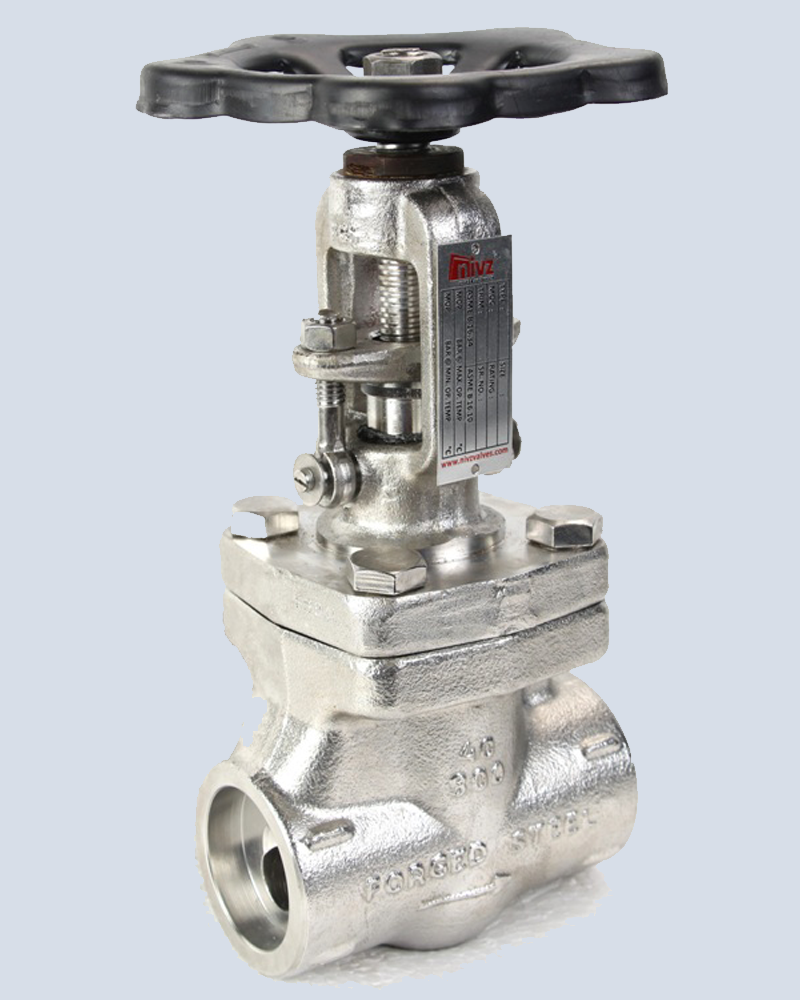

Forged Steel Globe Valve

Bolted Bonnet, Rising Stem, Reduce Bore Forged Globe Valve
End Connection – Threaded / Screwed End (BSP/NPT) Female / Socket Weld / Butt Weld End
Pressure Rating – Class 800 / 1500

Forged Globe Valve Model Series: FGL80

Nivz Valves Forged Steel Globe Valves are Bolted Bonnet, outside screw and yoke type, Rising Spindle construction. Nivz Forged Valves Body and bonnet made from high quality forgings.

Nivz Valves & Automation manufacturer and exporter Forged Steel Globe Valves in size 1/2” (DN15) to 2” (DN50) to suit various critical, non-critical applications and pressure rating in 800 and 1500 class.

Nivz make Forged Steel Globe Valve manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port globe valves have fast delivery or ready stock, for Standard Port globe valve do manufactuing on order basis.

Nivz manufacture Forged Steel Globe Valve in wide range of Body Materials like ASTM A 105 – Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L – Forged Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22 – Alloy Steel to suit high temperature and pressure industrial application.

Forged Steel Globe Valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Globe Valve available in Threaded End (BSP / NPT Female), Socket Weld End, Butt Weld End, Weld Neck End and Flanged End Connection.

For flanged end connection Forged Steel Globe Valve flanges will be a fabricated / welded with a valve body, flanges are not integral forged with body.

A complete range of Forged Steel Globe Valve Manufacturer, A 105, F11, F22, F304L, F316L Material Forged Valve Exporter, Stockist, Supplier, Importer.

Application

Generaly fine controlling of flow
Power Plants & Process Industries
Petrochemical Plants & Refineries
Fertilizers Plants
Process & General Industries
Sugar Industries & Distillery Plants
Water, Steam, Gas, Oil & other Non-aggressive media
Other application on request

Salient Features of Globe Valve

Body & Bonnet made from high quality forging.
The Forgings are precision machined for high performance
Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
Ground Finish Stem
Self Aligning Two Piece Gland
Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.

Features	Specifications
Design Standard:	BS 1873 / ASME B 16.34 / DIN EN 13789 Standard
Inspection & Testing Standard:	BS EN ISO 12266 - I (BS 6755 - I) / API 598 / ISO 5208
Flange To Flange Distance:	As Per ANSI B 16.10 / BS 2080.
End Connection:	Flanged End to ANSI B 16.5, Class 150 / 300 / 600 BS 10 Table D / E / F / H PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64 DIN Standard / JIS Standard / IS Standard Screwed - Threaded End to ANSI B 1.20.1 Socket Weld End to ANSI B 16.11 Butt Weld End to ANSI B 16.25
Manufacuring Size Range:	1/2" (DN15) to 12"(DN 300)
Pressure Rating of Valve:	150# / 300# / 600# / 800# PN 10 / PN 16 / PN 25 / PN 40 / PN 64
Valve Operation:	Manual Hand Wheel / Worm-Gear Actuator Operated Pneumatic Cylinder Actuator / Spring & Diaphragm Type Actuator Motorized Electrical Actuated

Features

Specifications

Design Standard:

BS 1873 / ASME B 16.34 / DIN EN 13789 Standard

Inspection & Testing Standard:

BS EN ISO 12266 - I (BS 6755 - I) / API 598 / ISO 5208

Flange To Flange Distance:

As Per ANSI B 16.10 / BS 2080.

End Connection:

Flanged End to ANSI B 16.5, Class 150 / 300 / 600
BS 10 Table D / E / F / H
PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64
DIN Standard / JIS Standard / IS Standard
Screwed - Threaded End to ANSI B 1.20.1
Socket Weld End to ANSI B 16.11
Butt Weld End to ANSI B 16.25

Manufacuring Size Range:

1/2" (DN15) to 12"(DN 300)

Pressure Rating of Valve:

150# / 300# / 600# / 800#
PN 10 / PN 16 / PN 25 / PN 40 / PN 64

Valve Operation:

Manual Hand Wheel / Worm-Gear Actuator Operated
Pneumatic Cylinder Actuator / Spring & Diaphragm Type Actuator
Motorized Electrical Actuated
