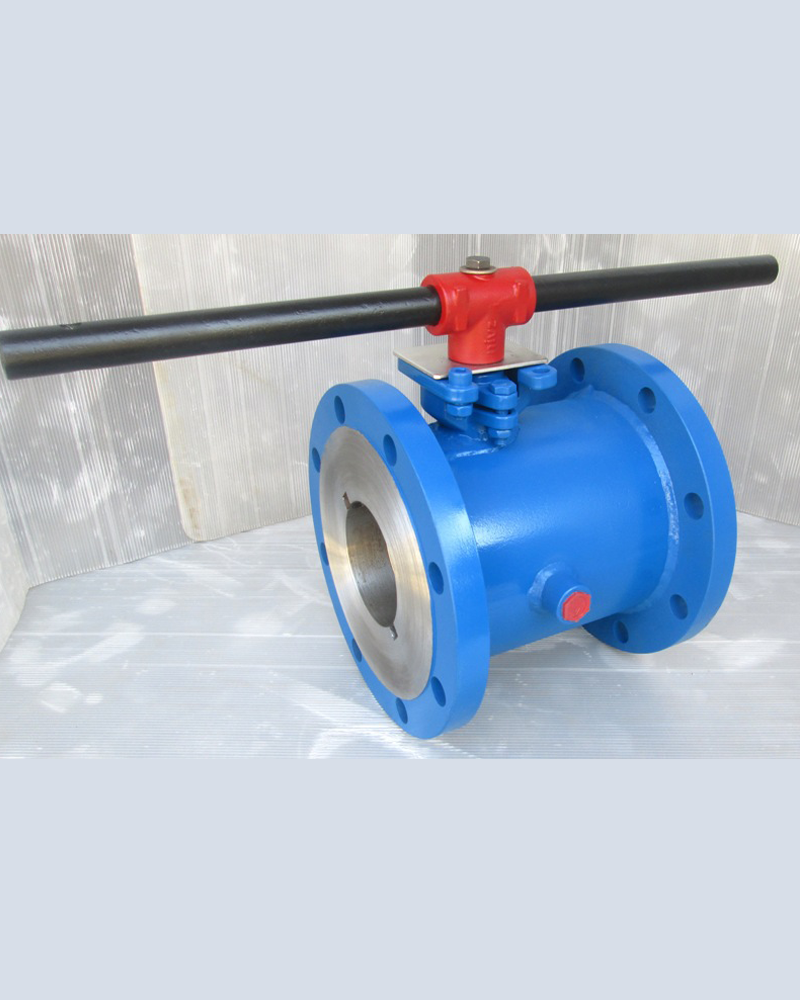

Single Piece Heavy Duty Body with Full Jacket design as per Design Standard ASME B 16.34/ISO 17292/7121/BS 5159
End Connection – Flanged End, Pressure Rating – 150# / 300#
Valve Operation – Hand Lever / Pneumatic Actuator Operated

• Full Jacketed Ball Valve Class 150 Series: FJK80
• Full Jacketed Ball Valve Class 300 Series: FJK81

The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Jacketed Ball Valve (Heating Jacket Ball Valve) with very well design to help the high temperature steam or oil flow over the valve ball & body parts to keep the media liquid. This applies especially to media like bitumen, asphalt, chocolate, liquid sulfur, molten sulphur, Lactum & Soap application. In addition, the efficient flow of media is ensured through the elimination of pockets.

Nivz Valves & Automation offers a variety of Jacketed Ball Valve. The Jacket covers the body from one flange to the other flange. Jacketed Valve body is modified by adding oversize flanges. As example: 4″ x 6″ Steam Jacketed Ball Valve has the nominal bore of 4″ (DN 100) and the flange size is 6″(DN 150). It allows enough space for bolting clearance after jacket fabricated on valve body. Full Jacketed ball valves being used to handle highly viscous materials or materials that solidifies at ambient temperatures.

Features

• High Quality with High Performance Jacketed Valve
• ISO 5211 Mounting arrangment
• Locking Provision in Open/Close Position
• Gland Type Sealing Arrangement
• Longer Smooth Life
• Positive Shut Off
• Quick in Action
• No Lubrication
• Compact Design & Simplicity
• Jacket In / Out with Drain Connection Option
• Heating / Cooling Jacket
• Varities of Body & Jacket Material
