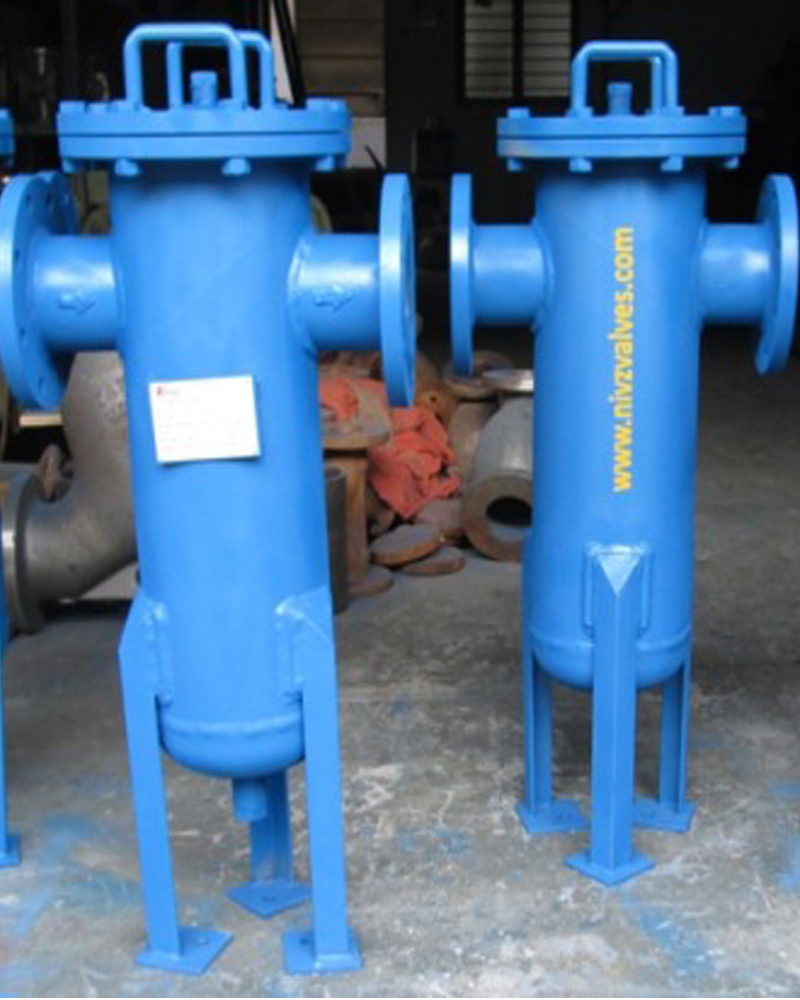

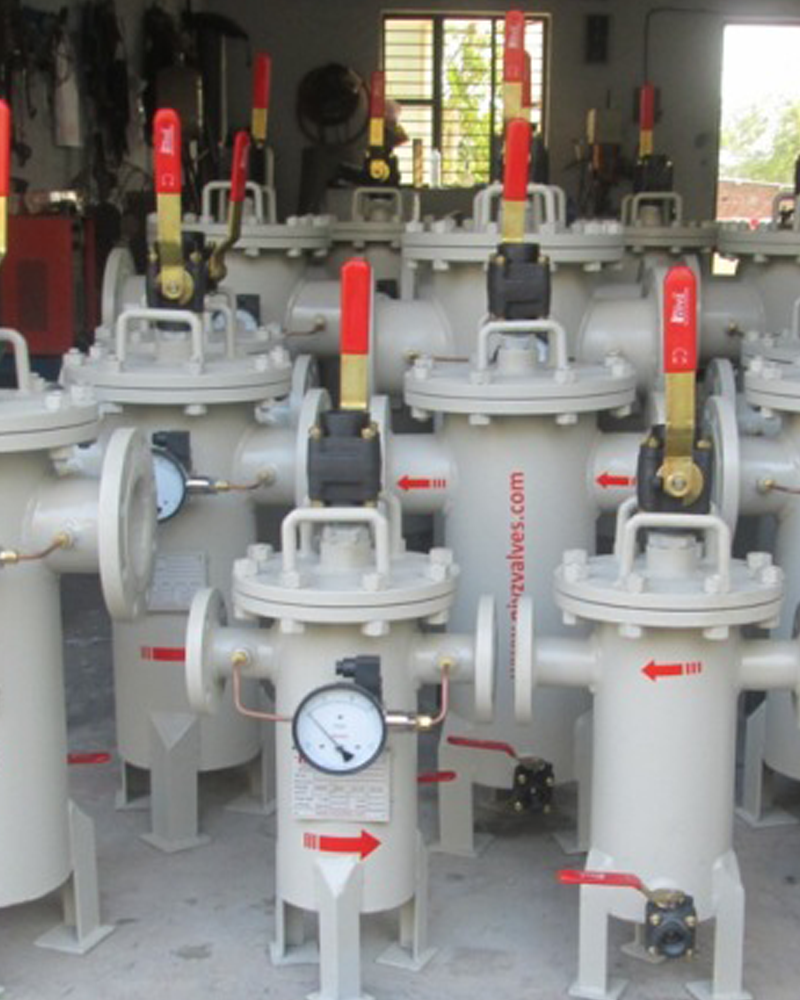

Fabricated Body Simplex Basket Strainer & Filters
Simlex Basket Strainer and Filter Design Standard – ASME Sec. VIII
End Connection – Flanged End / Butt Weld End
Pressure Rating – 150# / 300# PN16 / PN25 / PN 40 / PN64
- Bolted / Davit Arm Cover Fabricated Basket Strainer Flanged End, Rating – Class 150, Model Series: FSBS11
- Bolted / Davit Arm Cover Fabricated Basket Strainer, Flanged End, Rating – Class 300, Model Series: FSBS21
Basket Type Strainer Manufacturing Size Range: DN25/25mm/1″/One Inch, DN32/32mm/1-1/4″/One and Quarter Inch, DN40/40mm/1-1/2″/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch, DN350/350mm/14”/Fourteen Inch, DN400/400mm/16”/Sixteen Inch, DN 450/450mm18”/Eighteen Inch, DN500/500mm/20”/Twenty Inch, DN550/550mm/22”/Twenty Two Inch, DN600/600mm/24”/Twenty Four Inch Size and big more big large size of strainer can manufacture and supply on order basis.
A Strainer is basically mechanical product which has a provision to remove hard particle of pipe line subject to selection of perforated punched hole sheet or wire mesh degree of filtration, pipe line process media can be in form of liquid or gas. Baket Type strainer is a one types of filter – strainer which uses to remove a foreign particle of industrial process line.
Inside element of strainer body element shape is like a basket so it called Basket Type Filters & Strainers.
Selection of Strainer is base on Net Filtration Area; however net filtration is more pressure drop less. General practice minimum 3 times filtration area is required to proper function of strainer and reduces cleaning time. For special viscous media filtration area will increase for satisfactory performance of strainer.
Nivz bucket type strainers remove damage causing particulate matter from the process media, protecting system components such as flow meters, pumps, mechanical seals and spray nozzles.
Basket type filter feature top removal of the screen. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal.
The particulate matter is captured in the strainer basket. The line is then temporarily shut down and the basket removed for cleaning or replacement.
Advanced dynamic flow path and large filtration area elements ensure low pressure drops and reduced maintenance periods.
These strainers reduce downtime for cleaning due to their construction of bolted cover and easy removal of screen. They are ideal for very fine straining.
Nivz manufacture basket type strainer with high filration area which help to reduce pressure drop and less clearning period.
Salient Features of Basket Type Strainer
- Bolted body with cover
- Easy Removable filtering element
- Low pressure drop across the filter
- Low cost – Initial as well as service cost
- Adequate strength of element and housing
- Protect expensive Pumps. Meters Heat Exchangers, Valve, Spray Nozzle, Regulators etc
- Remove foreign particles, lumps, debris
- Top removal of screen with a lifting handle arrangement
- Baskets made from heavy gauge perforated stainless steel lined with wire mesh
- Large basket size holds sufficient solids for the required time between clean-outs
- Interchangeability of component with another of same type
- Wire mesh up to 5 Micron
- All types of strainer supplier
- Tailor made screen on request
Simplex Bucket/Basket Type Strainer Application
- Power Plants
- Water Treatment Plant
- Sugar Industries
- Fire Fighting Pump House
- Steel Plant
- Cooling Water Pump Suction Line
- Petrochemical Industries & Refinery Project
- Chemical Industries
- Fertilizer Plants
- Allied Industries
- Pulp & Paper Mill
- Cement Plant
- Pharmaceutical Industries
- Distillery Plant
