Three Way Globe Valve Body as per Design Standard BS 1873/ASME B 16.34/DIN EN 13789
End Connection – Flanged End, Pressure Rating – 150# / 300# / 600# / PN16 / PN25 / PN 40 / PN64 / PN100
Three Way Globe Valve Operation – Hand Wheel / Pneumatic Cylinder / Spring and Diaphragm Type Actuator Operatd / Electrical Actuator Operated / Motorized Actuated

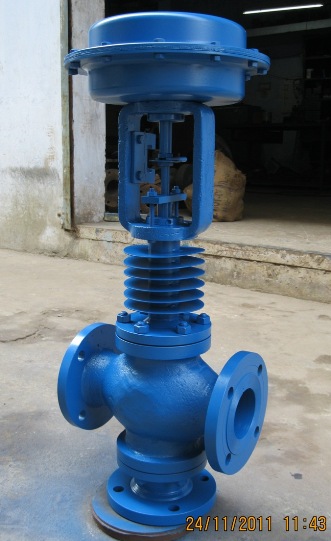

Spring and Diaphragm Actuator Operated 3 Way Pneumatic Globe Valve (Diverting Type) – Model: 3WDCV-D
Spring and Diaphragm Actuator Operated Pneumatic 3 Way Globe Valve (Mixing Type) – Model: 3WDCV-M

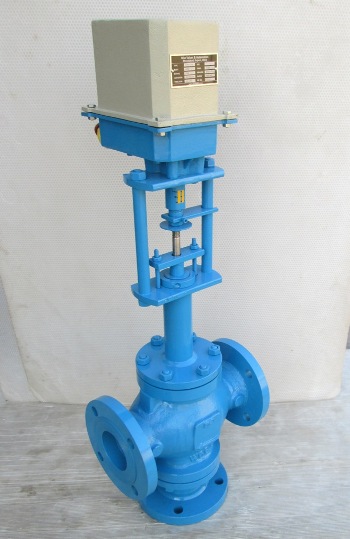

Motorized Electrical Actuator Operated 3 Way Globe Valve (Diverting Type) – Model: MOV15/3WD
Motorized Electrical Actuator Operated 3 Way Globe Valve (Mixing Type) – Model: MOV15/3WM

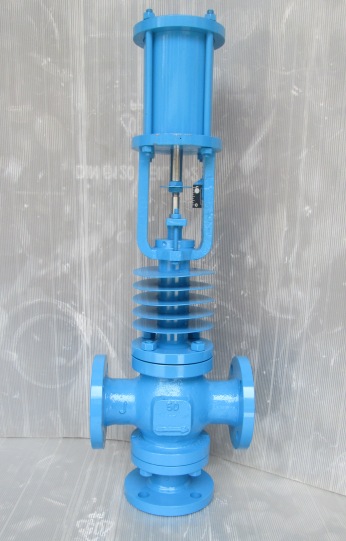

Pneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-D
Pneumatic Cylinder Actuator Operated 3 Way Globe Valve (Diverting Type) Model Series: 3WPCV-M

Three Way Globe Valve Manufacturing Size Range: DN25/25mm/One Inch, DN40/40mm/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch, DN300/300mm/12”/Twelve Inch size and more can manufacture and supply on request.

3 Way Globe valve body seat ring is shoulder type, threaded body seat ring which has large taper area that is for ample seating. Two nos. slots are provided on body seat ring, which is for easy removal for servicing at site. Welded type seat ring or Integral seat ring are also available in on request.

All Globe Valve stem is made from solid one piece construction. The standard range of Nivz 3 Way Globe Valve is sizes from 1/2″ (DN15) to 12” (DN300).
