Single Piece Heavy Design Casted Body, Design as per ASME B 16.34 Standard
End Connection – Flanged End
Pressure Rating – 150# / PN10 / PN16

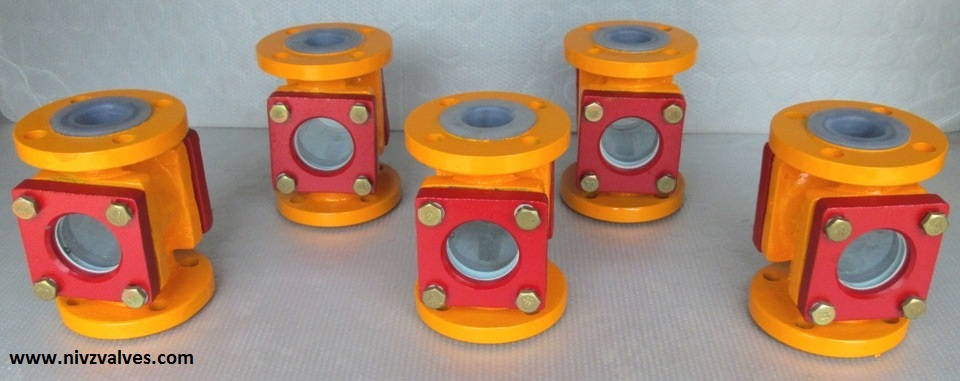

PFA – FEP – Teflon® – PTFE Lined Double Window Type Sight Flow Indicator Flanged End, Rating Class 150 – Model Series: PTSDW10

FEP, PFA, PTFE Lined Sight Flow Indicator Manufacturing Size Range: DN25/25mm/1″/One Inch, DN32/32mm/1-1/4″/One and Quarter Inch, DN40/40mm/1-1/2″/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch and DN150/150mm/6”/Six Inch Size.

Our manufacturing range of PFA-FEP-PTFE Lined Sight Flow Indicator used for corrosion & acidic application.

FEP-PFA-PTFE Lined Jacketed Sight Flow Indicator can install in either Horizontal or Vertical Line as per requirement.

Wide range of Body Material selection available like Grey Cast Iron, S.G. Iron, Malleable Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. Nivz PTFE Lined Sight Flow Indicator face to face (flange to flange distance) dimension is as per ASME B 16.10 standard and flange drilling as per ASME B16.5, 150 Class.
